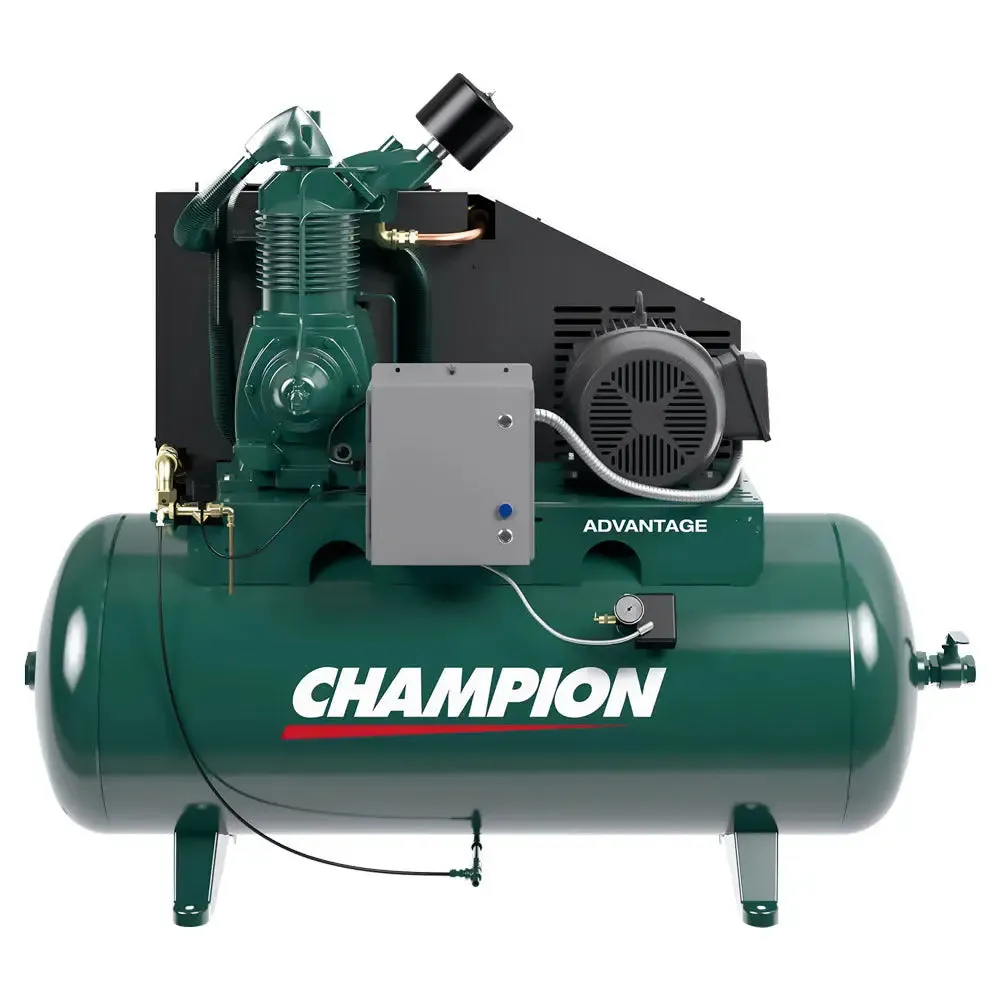

Name: Champion Advantage 25HP Horz Air Compressor (120 Gal)
SKU: 365537

Advantage splash lubricated 25HP, 120 Gal, horizontal tank, with R70 pump model air compressor.

These Advantage units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program, so the compressor arrives quickly, ready to install and operate. Each newly assembled unit has a 3-year warranty on the compressor pump.

Features:

Mounted Nema 1 Control Panel
Low Oil Stop Control
Electric - Auto Tank Drain
Air Cooled Aftercooler (Select Models)
Dual Control (15 & 25 HP Models Only)
Vibration Isolators
R-Series, two-stage pump
Loadless Starting
Intake Filter
Start/stop pressure switch control
1800 RPM Motor
ASME Coded Receiver
Enclosed Belt Guard

ADVA-S37
Tank: Horiz
Tank Size: Gallons (liters): 120 (454)
Phase: 3
Volts: 208
Model Number: HR25-12
Control Panel, Level 1: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: Std
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S37
Pump Model: R70
Pump RPM: 776
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 90.7 / 154.1
Est. Weight: Lbs. (kg): 1557 / 706

ADVA-S35
Tank: Horiz
Tank Size: Gallons (liters): 120 (454)
Phase: 3
Volts: 230
Model Number: HR25-12
Control Panel, Level 2: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: Std
California Compliant: Yes
Stock Variant(Ordering #): ADVA-S35
Pump Model: R70
Pump RPM: 776
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 90.7 / 154.1
Est. Weight: Lbs. (kg): 1557 / 706
